How to Create a Stutter Transition in Reason 4

by

This Cyber Monday Tuts+ courses will be reduced to just $3 (usually $15). Don't miss out.

In this tutorial, you’ll learn how to create a cool ’stutter’ transition effect inside Reason 4 using two combinators. The effect is relatively easy to pull off and makes for an interesting transition to work into your songs.

Note: this tutorial contains embedded audio that will not display in a feed reader. Click back to the site to read the tutorial with audio or download the Play Pack at the end of the tut.

Step 1

To begin, go ahead and create a new document inside Reason. Before we begin constructing our song, we want to make sure we have the rack setup correctly so we can utilize our effect patches later in order to achieve the stutter transition. What we want to do is create two mixers. One for drums, and one for instruments. The reason we want all the instruments routed to a separate mixer from the drums is because we want to create two combinators that are going to act as global effect patches for each mixer. In other words, we want one combinator affecting only the drums, and another affecting only the instruments.

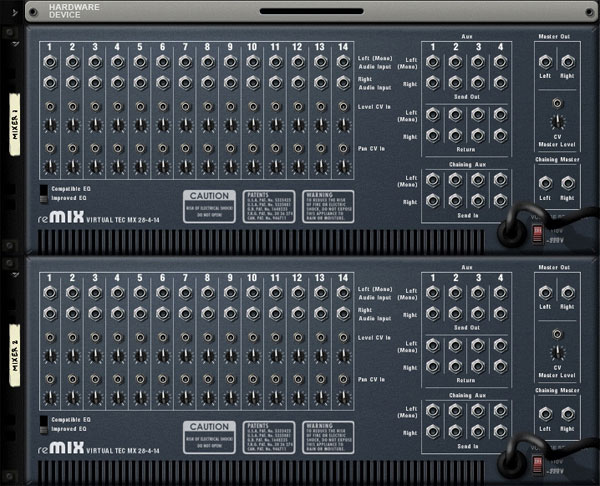

Now, in your newly created empty document go ahead and hold down Shift and create a Mixer 14:2. We don’t want the Mixer to be routed automatically. Now create another, again while holding Shift. You should now have two mixers in your rack that are not routed.

Step 2

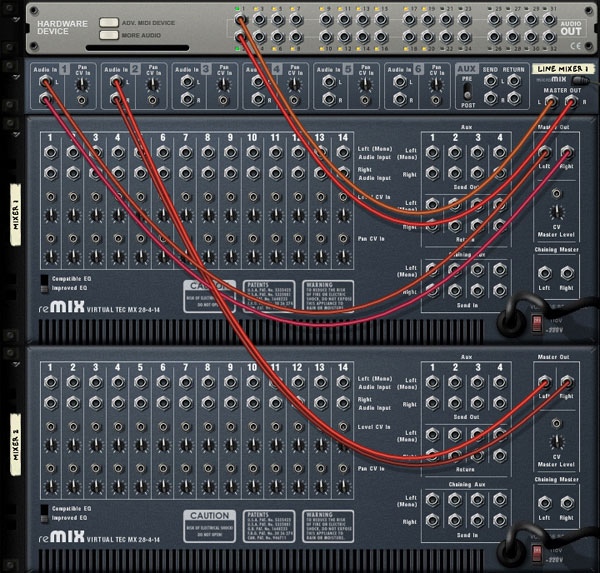

We’re going to need a master mixer. Go ahead select the Reason hardware device and create a Line Mixer 6:2 above the two Mixer 14:2’s. Next, route the Master Out of the first Mixer 14:2 into channel 1 of the Line Mixer and the Master Out of the second Mixer 14:2 into channel 2 of the Line Mixer.

Now that we have the rack setup correctly, we’ll use the first Mixer 14:2 for the drums, and the second Mixer 14:2 for the instruments.

Step 3

It’s time to turn on your creative juices. Start composing your track using the mixers you setup in steps 1 and 2, keeping all drums on Mixer 1 and all instruments on Mixer 2. Once you are done with your song and wish to add a stutter transition to your track you’ll need to create your global effect patches for each mixer and automate the enable/disable switch of the combinators.

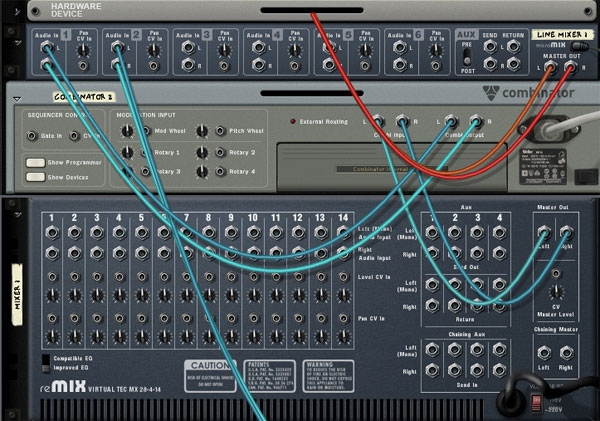

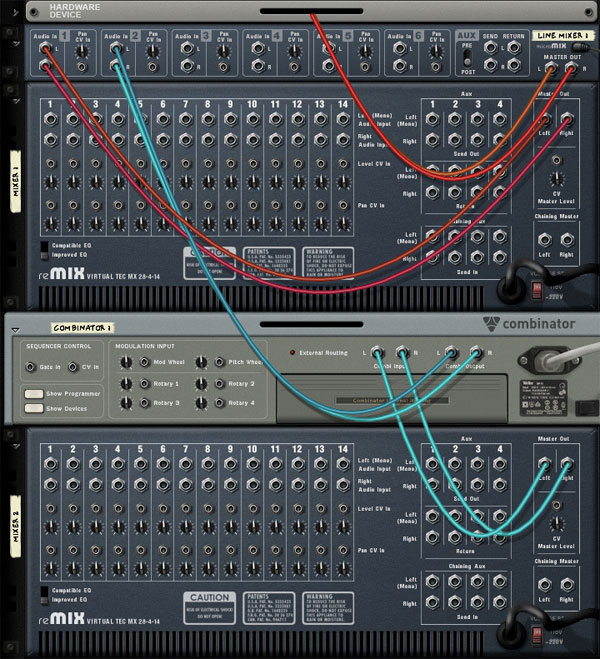

First, I’m going to begin with my instruments. Let’s go ahead and hold Shift and create an empty combinator and place it above the instruments mixer. Once you’ve created your empty combinator, click on the browse icon of the combinator and in Reason’s Factory Sound Bank, search for the combinator patch “Filter Sequence [Run]”. Next, route the Master Out of the instrument’s mixer into the input of the “Filter Sequence [Run]” combinator and route the output of the combinator to channel 2 of the Line Mixer we created earlier.

Let’s just assume I have all my instruments routed to that mixer and my song laid out, however for purposes of keeping the images clean, I’m going to continue to use my nearly empty reason document.

Step 4

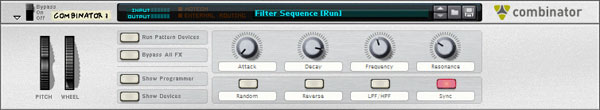

Now that we have our instrument’s mixer routed correctly into the combinator, we’re going to change a few settings on the combinator and make sure we switch the combinator from “On” to “Bypass” - we’ll set automation on the switch later in order to achieve the transition effect.

  • Attack - 1:0
  • Decay - 2:109
  • Frequency - 3:55
  • Resonance - 4:37

I got the best results from these settings, however, feel free to adjust them to your personal taste.

Step 5

Now that we have the instrument effect combinator setup we’ll go ahead and automate the bypass/on switch and place it into our track. For my track, I’m going to focus on the area just before the drums kick in - this is after all an instruments only effect combinator. Here’s an excerpt of my track just before the drums kick in. You’ll notice the transition is a little bland and could use some work.

Unchanged

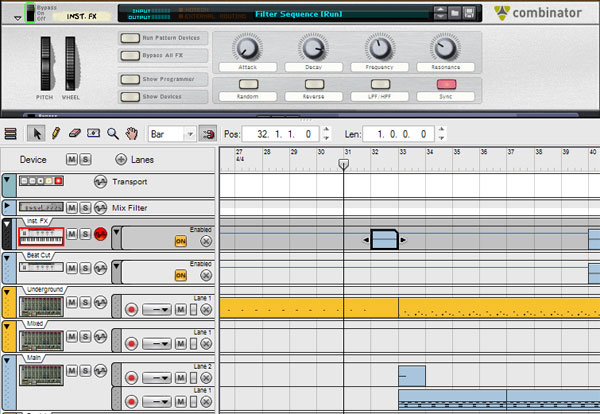

Right click on the Bypass/On/Off switch of the combinator and click “Edit Automation” - this will create a track in the sequencer for the Filter Sequence [Run] combinator. Next, create a clip in the sequencer. I used 1 bar as my length.

As you can see, I placed my clip just before the drums kicked in.

Step 6

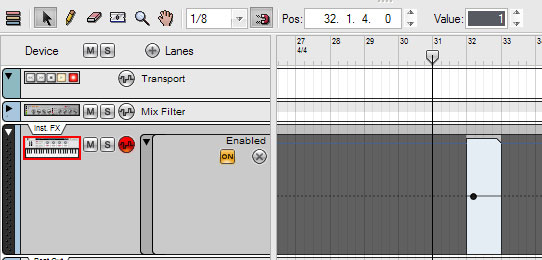

Double click on the clip you created and create a point set to 1. This will turn the combinator on at this part of the song.

From doing this, my track now contains a little more spice, however, there’s something missing. It needs something to fill the gaps a bit.

Combinator enabled

Step 7

To complete the instruments transition, we’re going to create two things. A subtractor and a combinator and route them both to the instruments mixer as instruments.

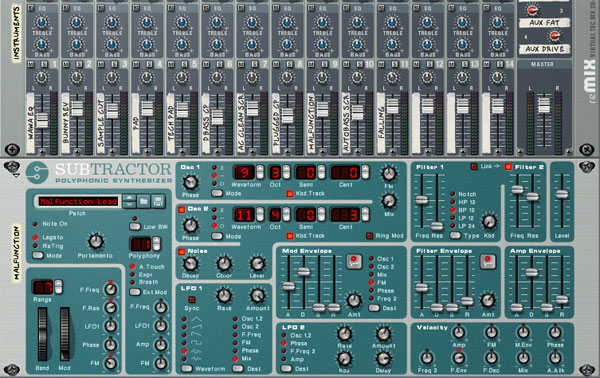

From the Reason Factory Sound Bank, create a subtractor with the Synth FX patch “Malfunction Lead” and make sure it is routed to the instruments mixer.

Step 8

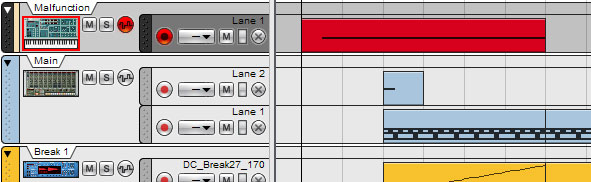

Now create a clip for the Malfunction Lead on the sequencer that begins 2 bars before the drums kick in and ends 4 bars after the drums kick in. You may need to adjust the length depending on the tempo of your track.

Create a single note to cover the duration of the clip, I chose F1.

Step 9

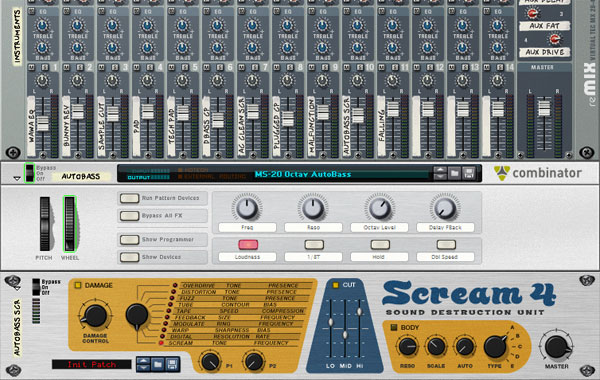

Time to create the combinator. Just as we did with the subtractor, create a combinator and load the patch “MS-20 Octav AutoBass”. Next, select the combinator and create a Scream 4 Sound Destruction Unit.

For the Scream 4, use the following settings or feel free to adjust:

  • Damage Control - 13
  • Damage Type - Scream
  • Parameter 1- 1:127
  • Parameter 2 - 2:0
  • Cut - Lo: 15, Mid: -15, Hi: 39
  • Master Level - 113

Step 10

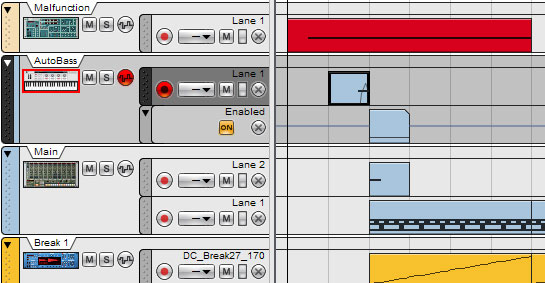

Create a clip 1 bar in length just before the drums kick in.

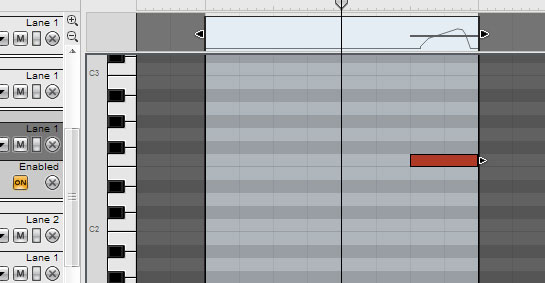

Now create a F2 note 1/4th bar in length.

Note: This combinator may want to trail off after the transition so if you do not want that to happen, simply create an automation clip on the on/off switch of the combinator and place it just after the note.

Let’s see how this sounds in context with the rest of the mix.

Transition complete

Step 11

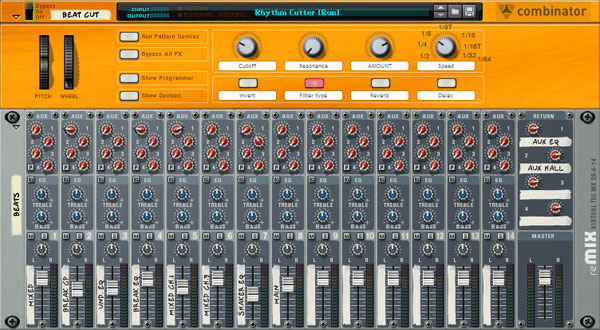

Drum time! As we did with the instruments mixer before, we’re going to need to create a global effect combinator for the drums mixer. Hold Shift and create a combinator and place it above the drums mixer and load the patch called “Rhythm Cutter [Run]”. (Search for it, it’s a Pattern Based effect patch located in the Reason Factory Sound Bank). Make sure you switch the combinator to “Bypass” before adding your automation clip to the sequencer.

Now we need to change a few of the default settings. Here’s what I use:

  • Cutoff - 1:34
  • Resonance - 2:0
  • Amount - 3:90
  • Speed - 4:38
  • Invert - Off
  • Filter Type - On
  • Reverb - Off
  • Delay - Off

Step 12

Route the drums mixer into the input of the “Rhythm Cutter [Run]” combinator and route the output of the “Rhythm Cutter [Run]” combinator to the input of Channel 1 on the Line Mixer we created in the beginning.

Now that everything is routed correctly for the drums mixer, the process of utilizing the effect is the same from what we did before. Simply add an automation clip on the combinator’s Bypass/On/Off switch and create a clip in the sequencer. I’ll go over it again in the next steps.

Step 13

Now that everything is setup, drums effect combinator, instruments effect combinator, I’ll utilize both for a more interesting transition for the middle of the song. I have a portion of my song where everything becomes mellow then all the bass, drums, and vocals kick back in. I want there to be a transition there. Here’s what it sounds like without the effect combinators and the Malfunction Lead and MS-20 AutoBass combinator we created in the previous steps.

Drums and instruments without transition

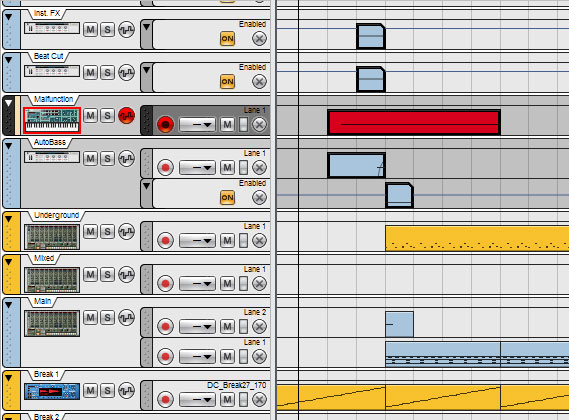

Now if we use the two combinators and place our “enabled” automation clips on the same bars just before the vocals and drums kick in, as well as set the Malfunction Lead and MS-20 AutoBass combinator we’ll get something a little different.

Beat Cut is our “Rhythm Cutter [Run]” combinator. Its enable automation clip is placed on the same bar as the instruments’ effect combinator automation clip, in turn creating a pretty cool transition. Check out the final result below.

Final stutter transition
